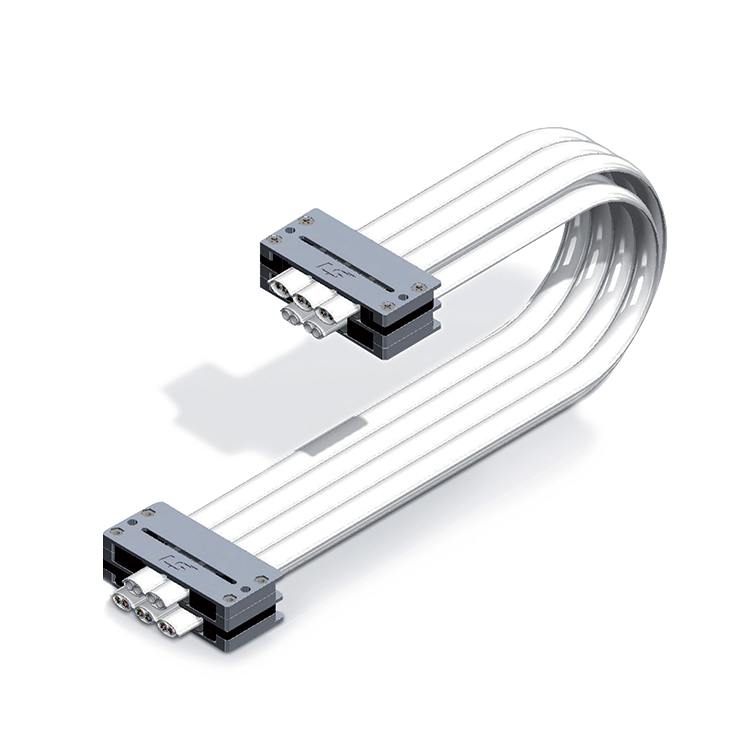

e-Flatek™ is a moving cable system for cleanrooms that provides power and signal transmission to automated factory machinery. e-Flatek™ consists of tubes, support chains and e-Line™, a factory automation cable, which are inserted into a durable e-Pod™ for protection from physical damage. The support chains inserted in a e-Pod™ are used instead of cable veyors to minimize dust generation during operation. In particular, as e-Pod™ have obtained ‘ISO Class 1’ certification, which means that the possibility of dust generation was below 0.1% according to the cleanroom international standard test, the reliability of the system has been proven.
Type and Use
• e-Flatek™ Package

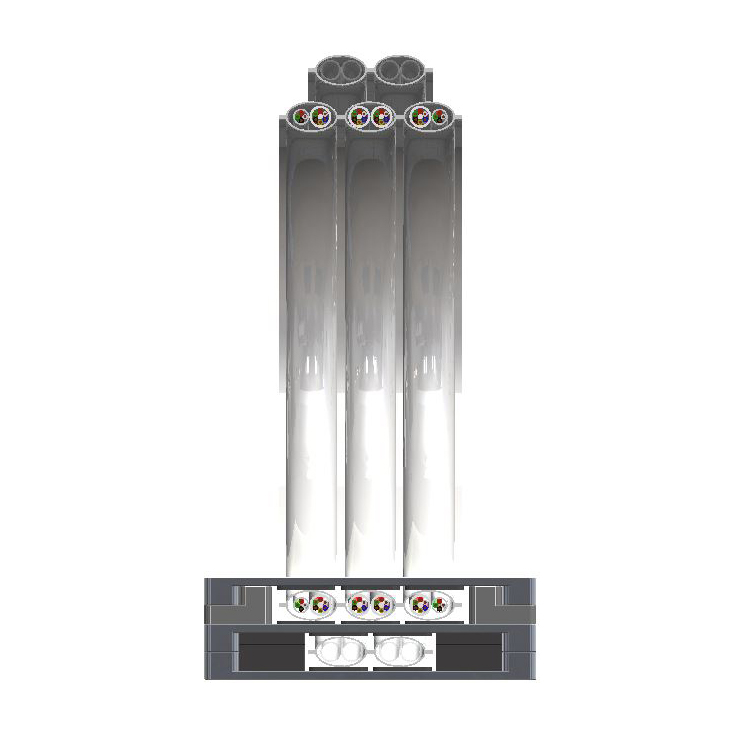

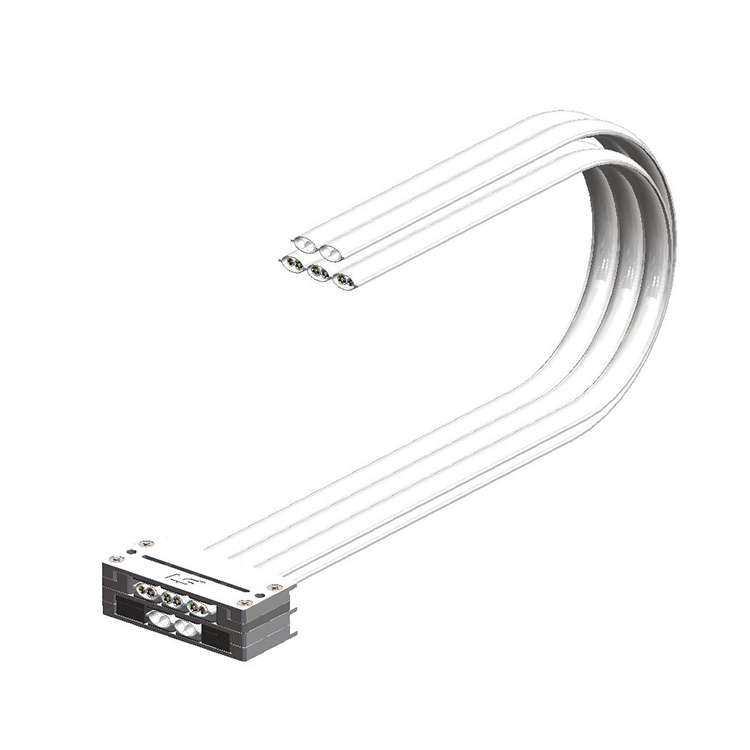

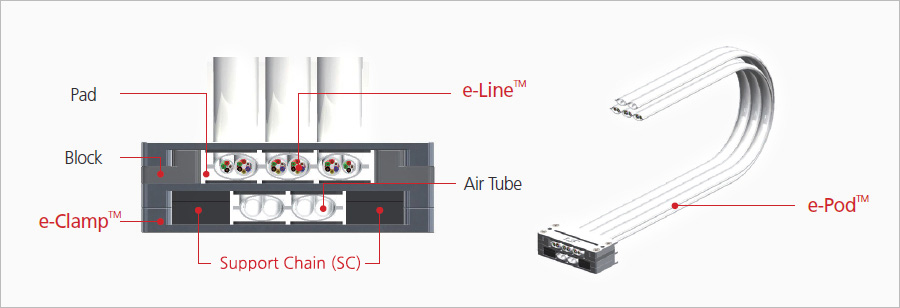

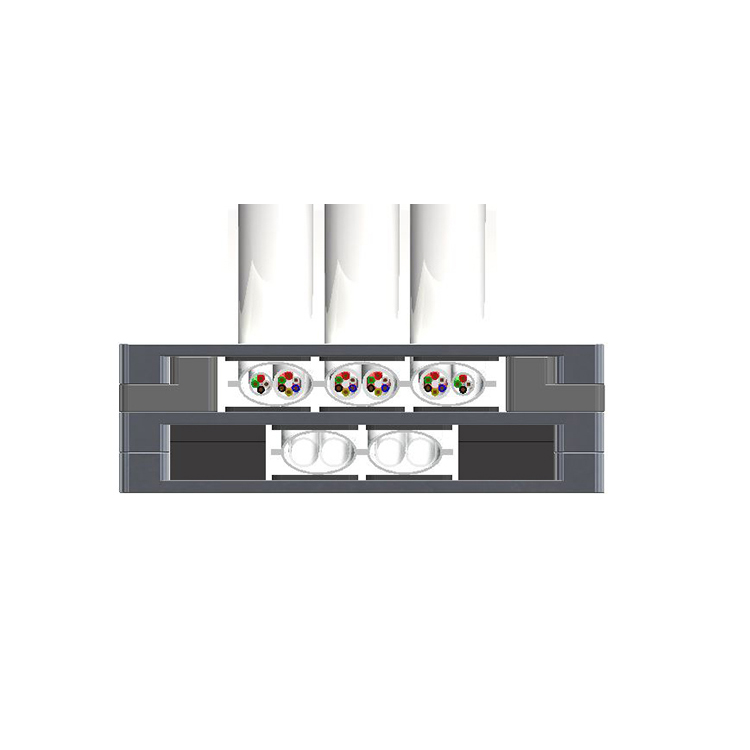

e-Flatek™ cables can be stacked according to customer’s requests, and accessories can be combined individually to design and produce various configurations.
[ Specification ]
| Maximum stroke length | 3,500㎜ |
|---|---|
| Standard bending radius | R20㎜, R40㎜, R70㎜, R100㎜, R130㎜ |
| Maximum speed | 2m/s |
| Maximum acceleration | 4G |
| Minimum flex life | 10 million cycles |
| Ambient temperature | -10℃ ~ +80℃ |
| Available cable diameter | 6 ~10㎜ for 1 cable / below 6㎜ for 2 cables |
| ISO 14644-1 / VDI 2083 grade | ISO Class 1 |
| Standard pod | 1~6 Pod |
| Maximum stacking | 6 Stacked |
• e-Pod™

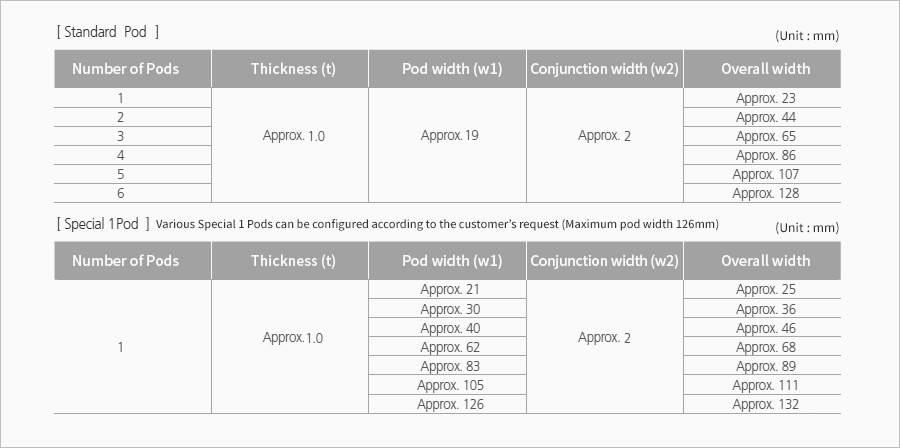

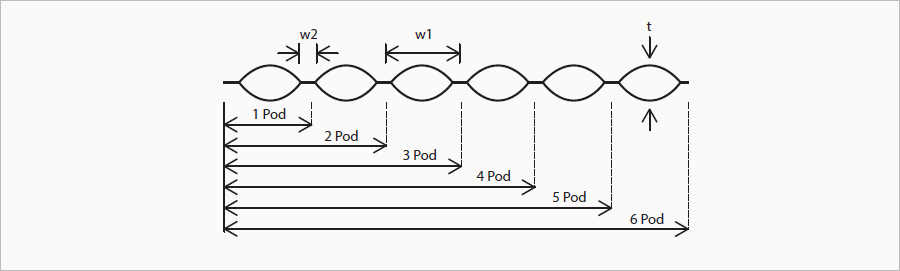

The e-Pod™ is a sleeve into which cables, support chains and tubes are inserted. It consists of a standard pod of 19mm pod width, and a customized special 1pod.
Product Catalogues
| Product Catalogues | Download | URL |
|---|---|---|
| e-Flatek™, Moving Cable System for Cleanrooms LS e-Flatek.pdf | Download |
