Bus Duct

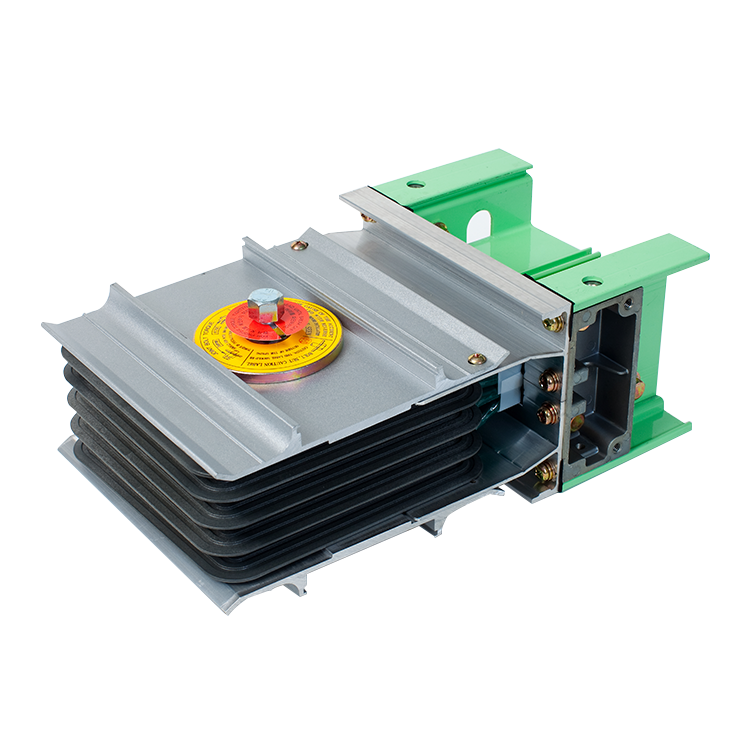

Iz/Ix/If-way

LS Cable & System I-series Busduct is a new sandwich type Busduct designed according to IEC standard. LS Cable & System investigated and developed optimized structure to provide the best solution. I-series took over all the advantages of E-series, such as two-piece aluminum housing structure and joint kit connections which enable easy installation with less time and lower cost. Also, its unique structure helps for dissipation, and offers stable electrical performance and higher mechanical strength.

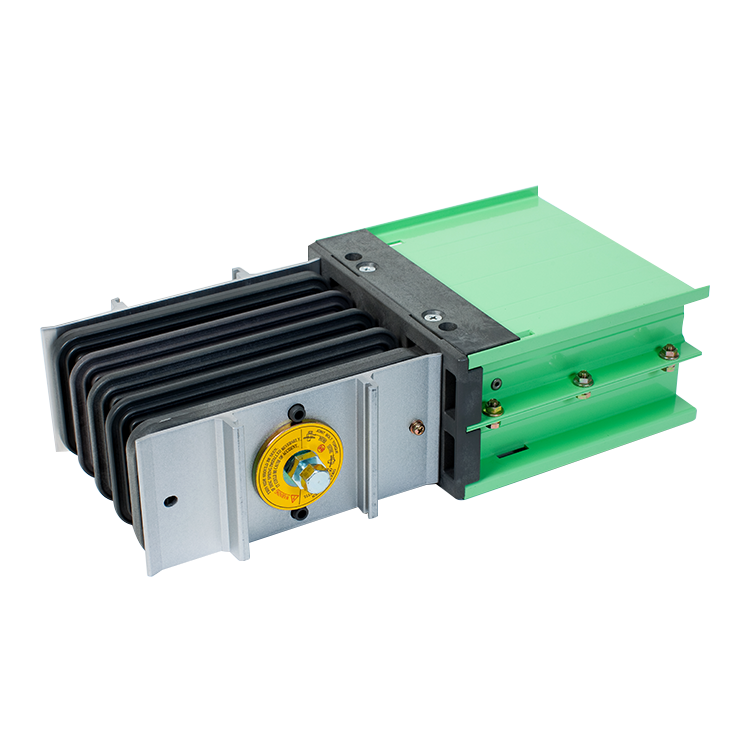

Ez/Ex/Ef-way

LS Cable & System E-series Bus duct can be used for applications carrying up to AC 1000V and currents from 630A to 7500A. When connected using a joint kit the connected surface is very large thus minimizing contact resistance, and basically IP54 level can be realized. It can be produced in both exterior and interior IP65 configuration, and interior IP42 according to application requirements. The E-series is classified into three types according to insulation: Ez/Ex/Ef-way. As an option, a single-bolt structure is feasible whereby the connector conductor connects directly without a joint kit.

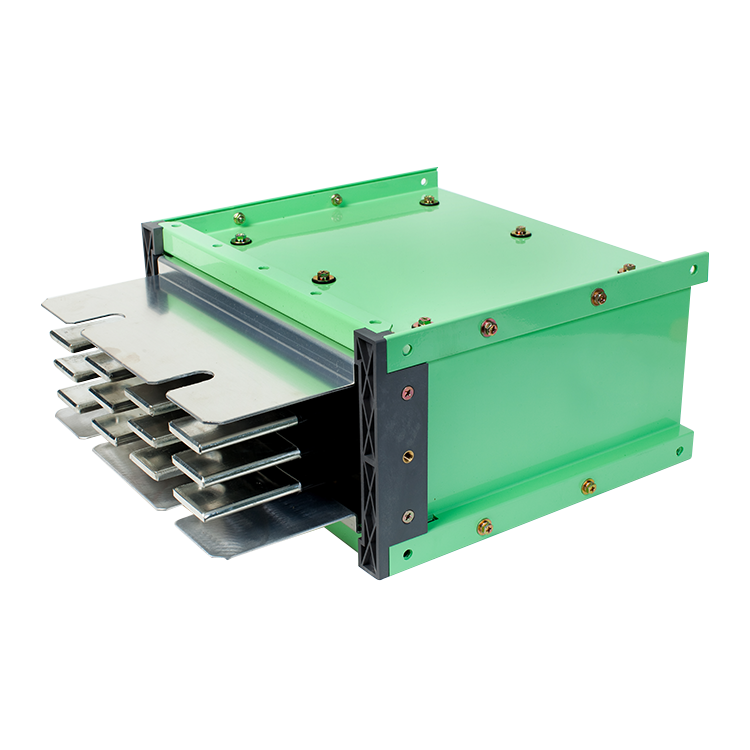

Mini-way

The LS Mini-way Bus duct is a bare conductor bus duct for air insulation with a low capacity for voltages under AC 1000V, and currents from 160A to 800A. The structure supports the conductor as a Class B insulation material, and when connected using a joint kit, the connected surface is large, minimizing contact resistance. Basically, IP54 level can be realized, and protection against leakage during use is feasible. It takes up less space compared to cables, is easy to manage, and load divergence is convenient.

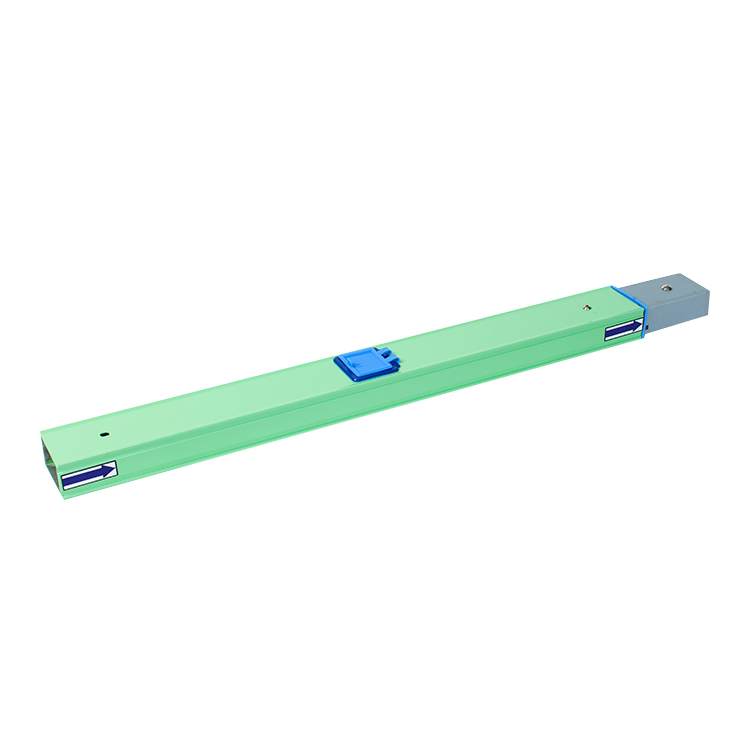

LT-way

LS Cable & System LT-way Bus duct is effective for lighting circuits having currents from 25A to 63A, or low capacity loads. Basically, IP54 level can be achieved and it can respond easily in vinyl houses, clean rooms, and especially to the frequent changes in construction conditions or routes.

MS/Wind-way

The LS Cable & System MS/Wind-way Bus duct is a hybrid product that features the benefits of sandwich types and air insulator types. Economics and safety have been maximized. Easy installation and small space occupancy enables stable supply of high capacity power. Economic efficiency is enhanced compared to existing power supply systems.

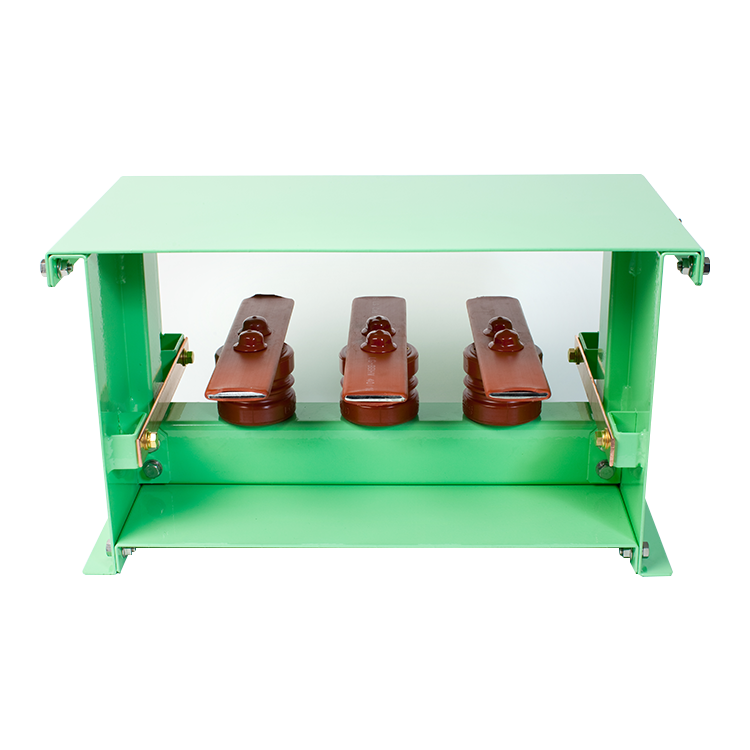

NSPB-LV/MV

The LS Cable & System NSPB is a product with enhanced stability, where epoxy coated conductors are arrayed in the form of air insulators. Products range from low voltage for applications requiring less than AC 1000V to high voltage products capable of voltage exceeding 27kV. Through our CAE system and various tests, we can accurately model various configurations for enclosures, insulation methods, space heaters and other options to provide conductors customized for each application.

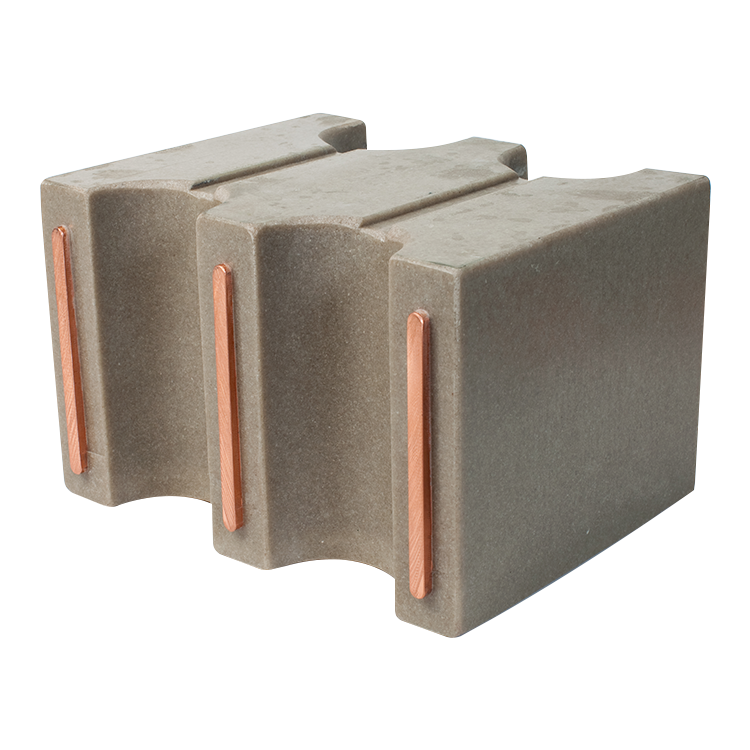

CR-LV/MV

The LS Cable & System CR-way is a product in which insulated epoxy resins are molded at each section to act as the enclosure. IP68 protection level can be realized. It is a distribution cable system for outdoors, humid and dusty places, and places frequently exposed to chemical materials.
